FACE TO FACE TRANSACTION ONLY WITH VALID UK FAC / UK Authority to Purchase.

NO POSTAGE OR EXPORT ON AMMUNITION



GGG 7.62 x 51mm NATO BALL AMMUNITION - 147g FMJ Boxer Primed

Latest Batches to choose from 2021 / 2019 / 2022 and 2023.4 coming soon

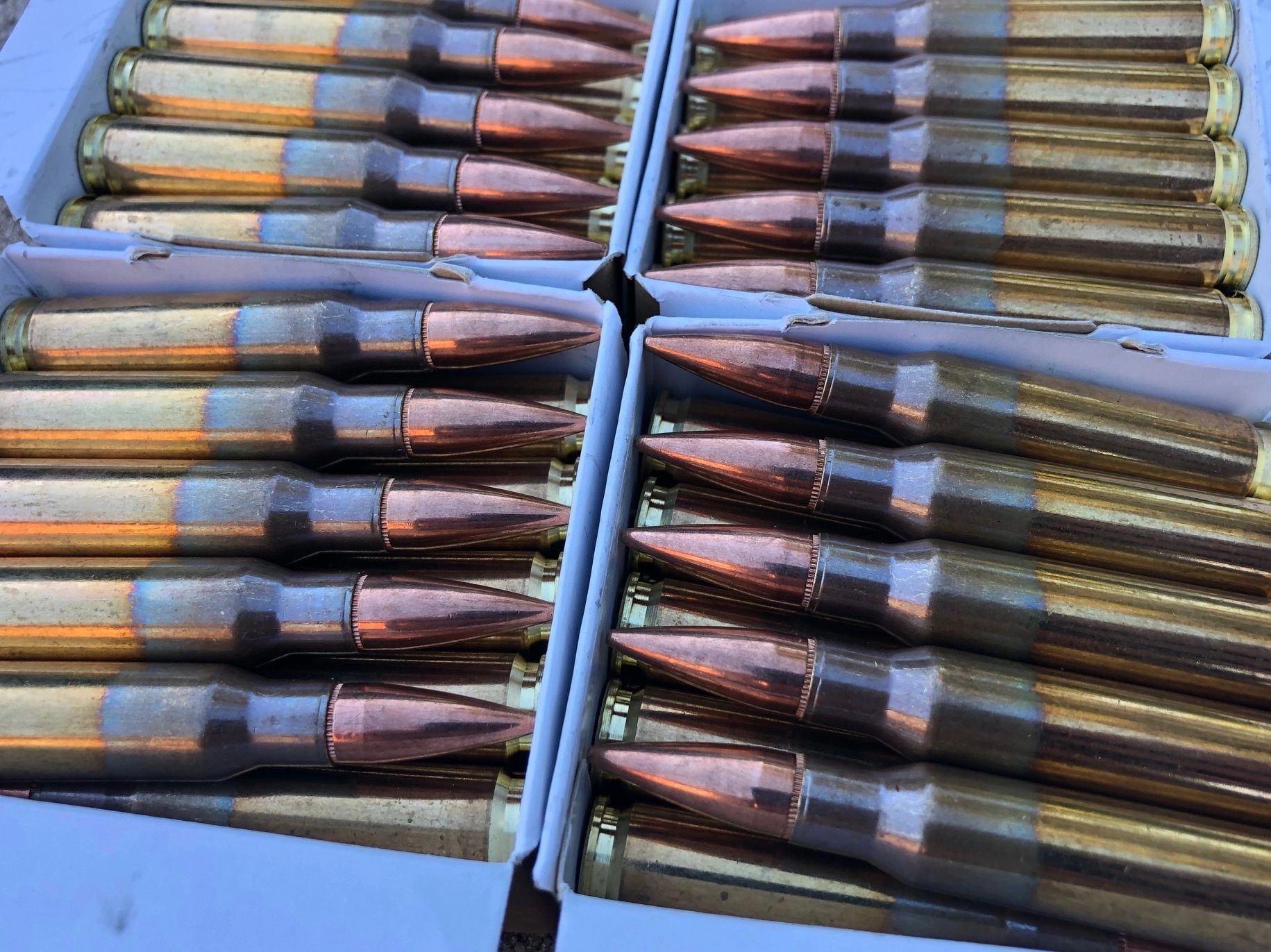

Boxes of 20



















PRODUCT INFORMATION SHEET



Available here:  http://www.ggg-ammo.lt/en/ggg-762x51-mm-nato-ball-cartridges-66







CARTRIDGE 7.62 x51

 CALIBER:

7.62x51

 SHEET:

1/4

DRAWN BY:

N.Račiūnienė

CHECKED BY:

R.Bendaravičius

DATE:

30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

7.62x51 NATO Ball Ammunition

GENERAL INFORMATION

7.62 mm BALL NATO ammunition produced in the company AB Giraitės ginkluotės gamykla (GGG)

conforms to NATO STANAG 2310 requirements. It is qualified in according to the NATO manuals

AC/225(LG/3-SG/1)D/9, PFP(NAAG-LG/3-SG/1)D(2004)1. NATO Design Number is AC/116 – 33A.

This ammunition produced in accordance with C.I.P (Permanent International Commission for the

Proof of Small-arms), ISO 9001:2015 (Quality Management Systems Requirements), ISO 2859-1

(Sampling Procedures and for Inspection by Attributes Part 1: Sampling Plans indexed by Acceptable

Quality Level (AQL) for lot-by-lot inspection), ISO 3951 (Sampling Procedures and Charts for

Inspection by Variables for Percent Defective) requirements. Ammunition can be fired from NATO

nominated 7.62 mm weapon: L7A2 and M240B machine gun. The cartridges 7.62x51 is designed for

use in the FN MAG, MG3, M60, NF1 machine gun and FN FAL/LAR, G3A2, M14 assault rifles too.

TECHNICAL SPECIFICATIONS

1. Table. Technical specifications

Caliber 7.62 mm

Waterproofing

lacquer

Case mouth and caseprimer

joint are

waterproof sealing

Total length mm 71,12 - 0,76

Total weight g 24,40Å}1,00

Bullet type Ball

Bullet weight

gr 147

g 9,65 - 0,20

Bullet lenght mm 28,95 - 1,00

Bullet extraction N 265 N

Bullet material

Jacket – CuZn10; core –

lead antimony (2,5 %)

Case material CuZn30

Case length mm 51,18 - 0,38

Propellant type Double base, smokeless

Primer

type BOXER

Percussion, non

corrosive, non mercuric

BALLISTIC PROPERTIES

Compatibility: STANAG 2310, AC/225 (LG/3-SG/1) D/9, PFP (NAAG-LG/3-SG/1) D(2004)1.

71.12-0,76

0

Ø 8.7 maks.

Bullet

51.18-0,38

0

Jacket

Lead core

Propellant

Case

28.95-1

0

Prime

X

X

62

7.

PRODUCT INFORMATION SHEET

CARTRIDGE 7.62 x51

 CALIBER:

7.62x51

 SHEET:

2/4

DRAWN BY:

N.Račiūnienė

CHECKED BY:

R.Bendaravičius

DATE:

30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

ELECTRONIC PRESSURE, VELOCITY AND ACTION TIME (EPVAT), KIAG 6215

PRESSURE TRANSDUCER

Ammunition

temperature

21 ÅãC + 52 ˚C – 54 ˚C

Velocity at 24 m,

m/s

V = 823  15 - 75  V +52ÅãC - V 21ÅãC  + 45 - 75  V -54ÅãC - V 21ÅãC  + 45

Case mouth

pressure, bar

P + 3 SD  4450

-1100  P +52ÅãC - P 21ÅãC  +550

P +52ÅãC  4600

-1100  P -54ÅãC - P 21ÅãC  +550

P -54ÅãC  4600

Port pressure, bar P - 3 SD  560 – –

Action time for

single round, ms

T  4 – –

Muzzle energy, J E  2931 – –

Bullet energy at 24

m, J

E  2756 – –

V = corrected mean velocity

P = corrected mean pressure

PRECISION at distance 550 m Horizontal standard deviation Vertical standard deviation

200 mm  200 mm

FUNCTION AND CASUALTY Permissible percentage of defects was not exceeded

TRAJECTORY MATCH Vertical match Horizontal match

At distance 300 m

At distance 550 m

125 mm

275 mm

175 mm

385 mm

TERMINAL EFFECTS at distance 550 m

Perforations

Mild steel plate

Aluminium witness screen (0,3 m behind

steel plate)

90 %

3,5 mm (SAE 1010 / 1020, hardness RB 55–70)

0,5 mm 2024T3

PRIMER SENSITIVITY Test ball H + 5 SD H – 2 SD

Critical height method (run-down)

. 30 mm

(111,7 Å} 0,57) g

500 mm  75 mm

WATERPROOF TEST

Vacuum pressure not less 50 KPa

Time not less 30 s

No more than 15% leaky rounds

MARKING

Minimum marking of cartridge and it’s packaging is done in accordance with STANAG 2953 (AOP

– 2C):

PRODUCT INFORMATION SHEET

CARTRIDGE 7.62 x51

 CALIBER:

7.62x51

 SHEET:

3/4

DRAWN BY:

N.Račiūnienė

CHECKED BY:

R.Bendaravičius

DATE:

30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

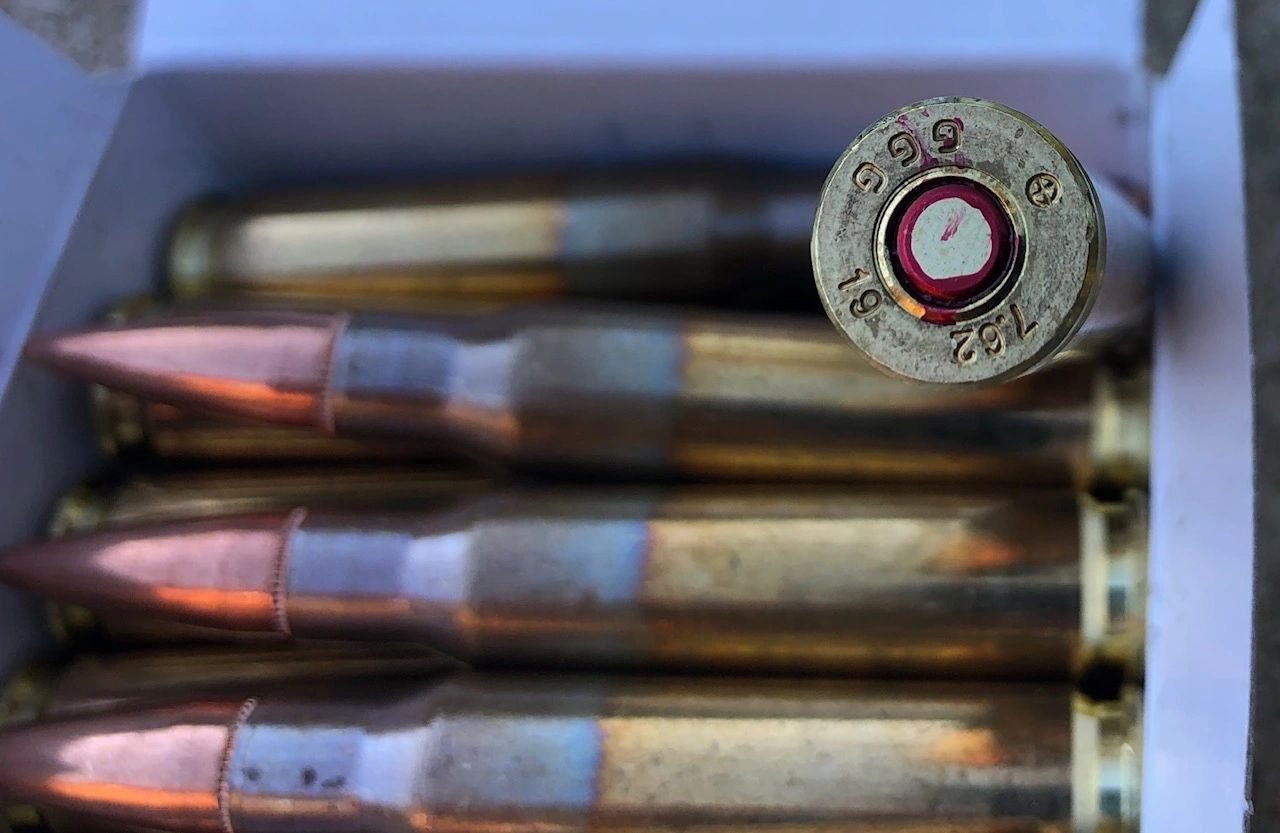

- Stamped on the base of cartridge case:  NATO design mark

 Manufacturer’s initials

 Caliber

 Last two digits of year of manufacture

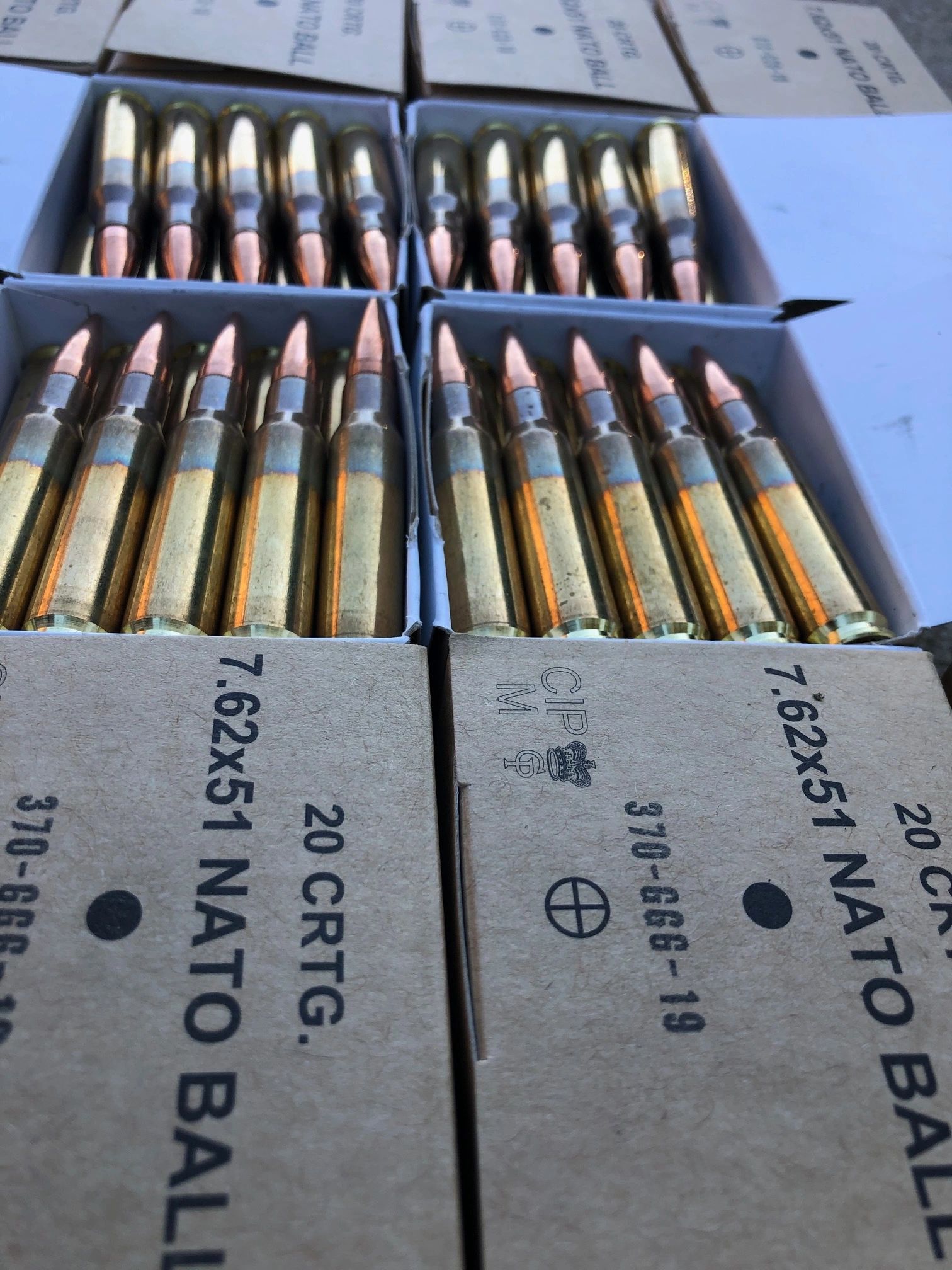

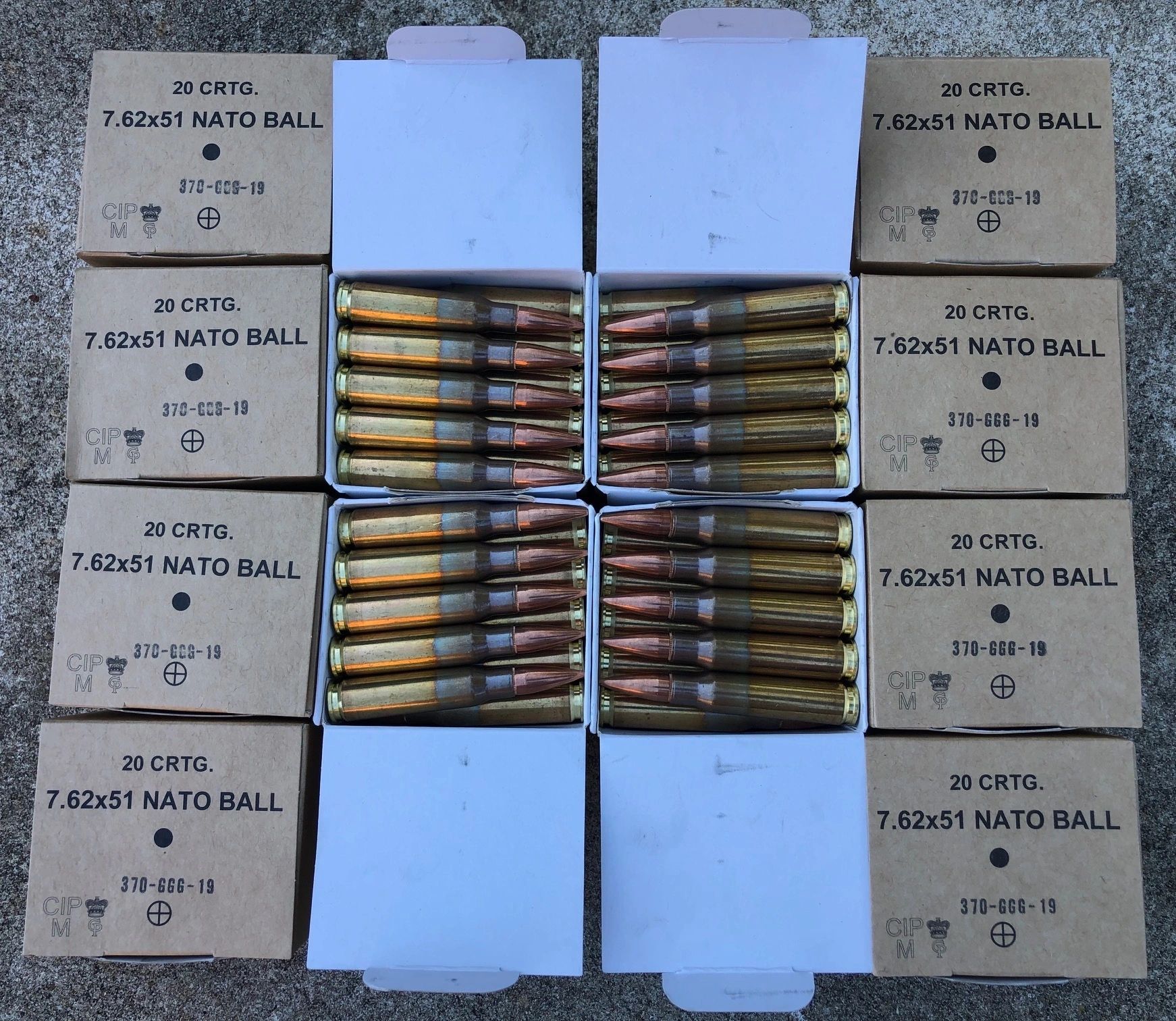

- Marking on the internal carton box:  Quantity of cartridges in the box

 Caliber

 Type of bullet

 Lot number

 NATO design mark

 Recycle marks of manufacturer

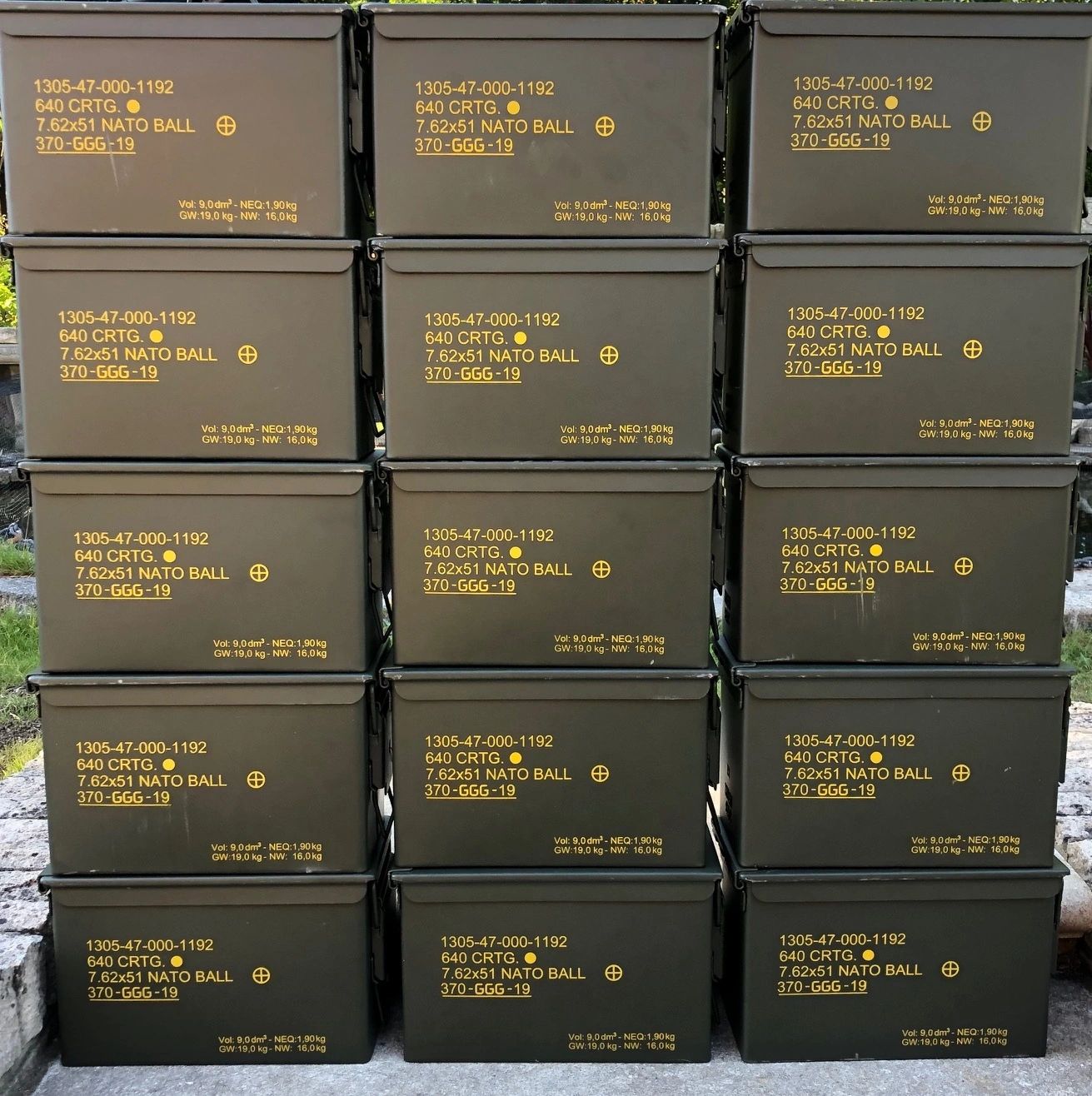

- Marking on the external carton or metal box:

 NATO stock number (NSN)

 Quantity of cartridges in the box

 Type of bullet

 Caliber

 NATO design mark

 Lot number

 Net weight

 Net explosive quantity

 Gross weight

 Volume

 Proper chipping name

 Certification number of the outer box

 UN number

 Explosive hazard orange mark

 Recycle marks of package

 Serial number label of box

PACKAGING

7.62x51 cartridges supplied in either outer carton or metal M2A1 boxes which are palletized.

The boxes and pallets should be marked according to the requirements of the customer.

2. Table. Cartridges packaging and units

Number of

packing option

Palletization

option

PACKING OPTION

UNITS

Quantity of cartridges Dimension, mm

Net

weight,

kg

Gross

weight,

kg

NSN 1305-47-000-1192

1

Internal carton box 20 72 x 61 x 43  0,5

External Metal box M2A1 640 305,6 x154,8 x190,5 16,0 19,0

1.1 EUR pallet 30720 920x1250x520 737,0 941,0

1.2 EUR pallet 35840 1080x1250x520 860,0 1097,0

PRODUCT INFORMATION SHEET

CARTRIDGE 7.62 x51

 CALIBER:

7.62x51

 SHEET:

4/4

DRAWN BY:

N.Račiūnienė

CHECKED BY:

R.Bendaravičius

DATE:

30/01/2020 762 PIS GP11 02 This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent. This document is the property of AB Giraites Ginkluotes Gamykla (

GGG). It may not be used, reproduced or disclosed to any 3rd party without its prior formal consent.

Continue of Table 2. Cartridges packaging and units

Number of

packing option

Palletization

option

PACKING OPTION

UNITS

Quantity of

cartridges

Dimension, mm

Net

weight,

kg

Gross

weight,

kg

2

Internal carton box 20 72 x 61 x 43  0,5

External carton box 600 321x154x183 15,0 16,0

2.1 EUR pallet 38400 800x1200x900 921,0 1053,0

2.2 Strengthened EUR pallet 42000 1000x1200x810 1008,0 1187,0

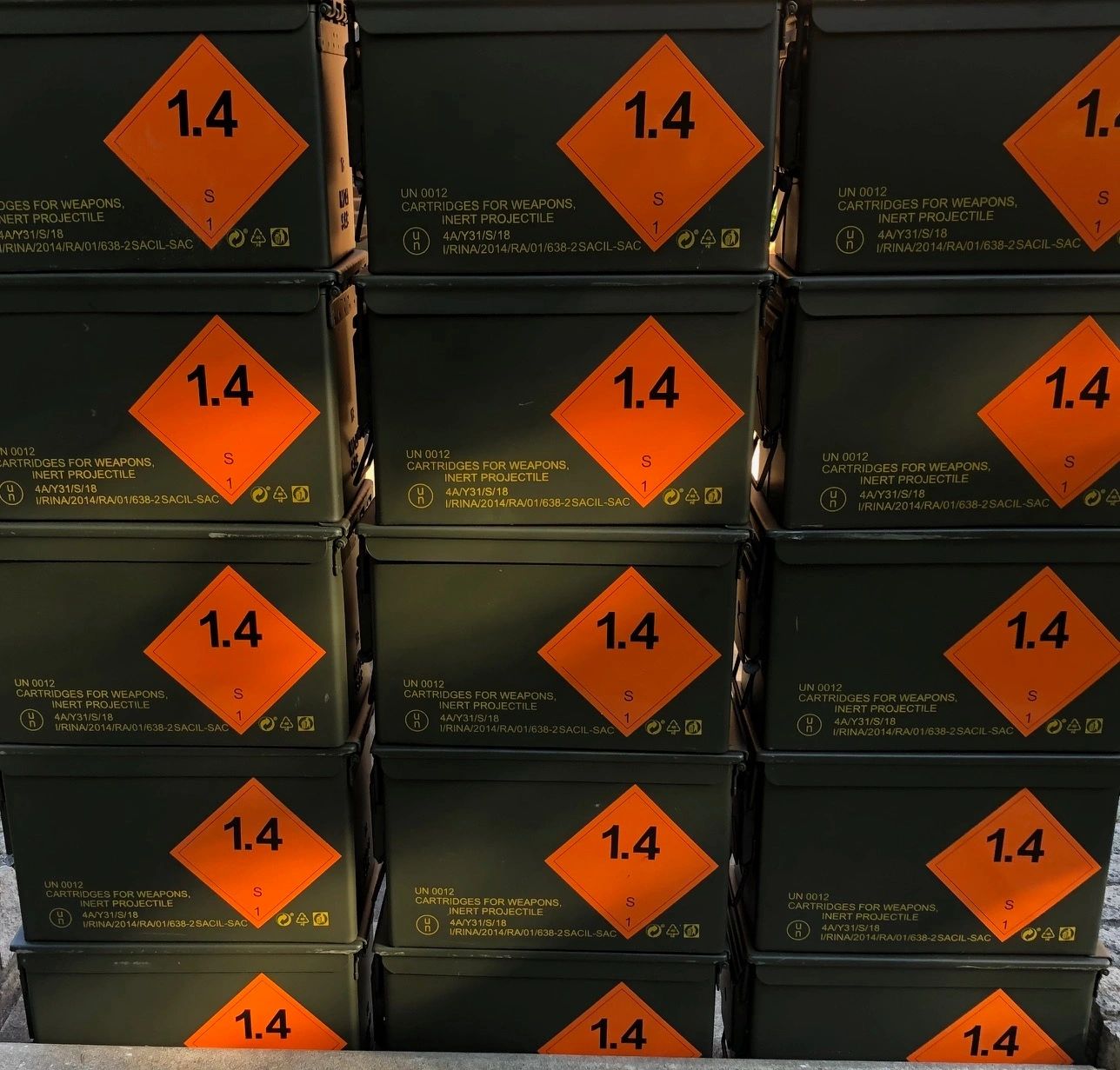

SHIPPING AND STORAGE DATA

Proper shipping name – Cartridges for weapons, inert projectile

Hazard classification code – 1.4 S

UN serial number – UN 0012
